Recessed lighting transforms a room’s functionality and ambiance without eating up ceiling space. But while the fixtures themselves are straightforward, wiring them properly requires respect for electrical code and a methodical approach. Homeowners comfortable with basic electrical work can tackle this project, but it’s not one to wing. This guide walks through the process of wiring recessed lights safely and correctly, from understanding circuit requirements to making the final connections. Anyone unfamiliar with household wiring or unsure about working inside energized panels should hire a licensed electrician, there’s no shame in knowing when to call in a pro.
Key Takeaways
- Proper planning and code compliance are essential when learning how to wire recessed lighting, including verifying IC or non-IC housing ratings and calculating circuit capacity to stay within 80% of breaker capacity.
- Turn off power at the breaker panel and use a non-contact voltage tester to confirm circuits are dead before beginning any work—never assume a circuit is off based on the switch position alone.
- Space recessed lights 4 to 6 feet apart and 18 to 24 inches from walls, positioning them between joists to avoid cutting through structural members and ensuring even room illumination.
- Cable must be secured within 8 inches of each junction box and every 4.5 feet along runs per NEC requirements, with proper slack left at fixtures for safe connections.
- Connect wires by color—black to black, white to white, and ground to ground—twisting clockwise with lineman’s pliers and securing with appropriately sized wire nuts before testing all connections.
- LED recessed fixtures offer superior energy efficiency and minimal heat output, requiring LED-compatible dimmers to avoid flickering or buzzing issues that plague incandescent dimmers.
Understanding Recessed Lighting Basics and Safety Requirements
Recessed lights, also called can lights or downlights, mount flush with the ceiling. Most residential installations use IC-rated (insulation contact) housings, which allow direct contact with insulation, or non-IC housings that require a 3-inch clearance. Always verify the rating before installation, mixing them up creates a fire hazard.
Electrical code compliance is non-negotiable. The National Electrical Code (NEC) governs wiring standards, but local amendments vary by jurisdiction. Most recessed lighting circuits run on 15-amp or 20-amp breakers using 14/2 or 12/2 NM-B (Romex) cable respectively. A 15-amp circuit handles roughly 12 to 15 standard LED recessed fixtures: a 20-amp circuit can support more, but calculate total wattage to stay below 80% of circuit capacity.
Permits are usually required for new circuit installation or modifications to existing circuits. Installing fixtures on an existing, properly sized circuit may not require a permit in some areas, but verify with the local building department before starting.
Safety begins at the breaker box. Turn off power at the main panel and use a non-contact voltage tester to confirm circuits are dead before touching any wires. Wear safety glasses when working overhead, and use a sturdy ladder rated for the user’s weight plus tools. Never assume a circuit is off just because the switch is down.
Tools and Materials You’ll Need
Gather everything before starting. Running back to the hardware store mid-project wastes time and risks mistakes.
Tools:
- Non-contact voltage tester
- Wire strippers (14–12 AWG)
- Lineman’s pliers or combination pliers
- Screwdrivers (flat and Phillips)
- Drywall saw or reciprocating saw
- Drill with hole saw (typically 4, 5, or 6-inch depending on fixture size)
- Fish tape or flexible drill bit for routing cable
- Stud finder
- Tape measure and pencil
- Ladder
- Safety glasses
Materials:
- IC-rated or non-IC recessed light housings (match insulation conditions)
- LED retrofit kits or integrated LED housings
- NM-B cable (14/2 for 15-amp circuits, 12/2 for 20-amp)
- Wire connectors (wire nuts) sized for 14 or 12 AWG
- Cable staples or clamps
- Junction box (if required for connections)
- Electrical tape
Choose LED fixtures for energy efficiency and minimal heat output. Integrated LED housings simplify installation, no separate trim or bulb to fiddle with. Retrofit kits work if the housings are already in place but outdated.
Planning Your Recessed Lighting Layout
Layout determines how evenly a room is lit. A common rule of thumb: space recessed lights 4 to 6 feet apart and position them 18 to 24 inches from walls. Adjust based on ceiling height, fixture beam angle, and room function. Kitchens and task areas need tighter spacing: living rooms can go wider.
Use a stud finder to locate ceiling joists. Recessed housings fit between joists (typically spaced 16 or 24 inches on center), so plan placements that avoid cutting through structural members. Mark each fixture location with a pencil.
Determine the power source. Tapping into an existing ceiling fixture or switch is common. Trace the circuit back to confirm it has capacity for additional load. If adding a new circuit, the wire runs from the breaker panel to a switch, then to the first light.
Map the cable route. The easiest path runs along joists, but crossing joists requires drilling 1.5-inch holes through the center (never within 2 inches of the top or bottom edge to preserve joist strength). Protect cables with nail plates where code requires.
Sketch the layout on paper. Note switch location, fixture positions, and cable paths. This prevents mid-project confusion and helps spot conflicts with HVAC ducts or plumbing.
Step-by-Step Wiring Instructions
With planning complete and power confirmed off, begin the installation.
-
Cut the ceiling openings. Use the template provided with the housing or measure the diameter required. Drill a pilot hole, then cut cleanly with a drywall saw or hole saw. Go slow to avoid cracking drywall beyond the opening.
-
Run the cable. Start at the power source (switch box or existing junction). Feed NM-B cable through the ceiling cavity toward the first fixture location. Use a fish tape if access is tight. Leave 12 to 18 inches of slack at each fixture for connections. Secure cable with staples within 8 inches of each box and every 4.5 feet along runs, per NEC requirements.
-
Install the housings. Push the housing into the ceiling cutout. Most have adjustable clips or bars that expand to grip the drywall. Ensure the housing sits flush and secure. If the housing has an integrated junction box, route the cable into the knockout and secure with a cable clamp.
Connecting the Wiring to Each Fixture

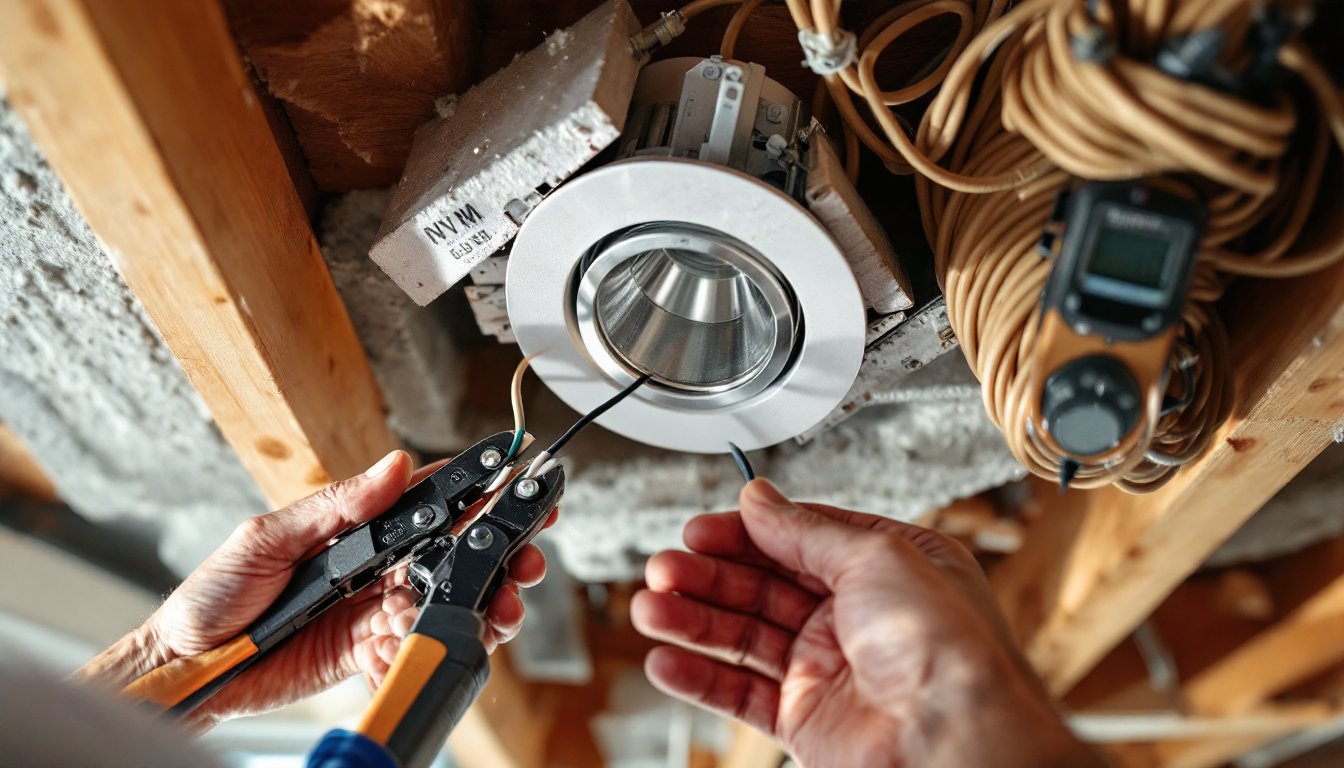

Each recessed light connects the same way. Strip 3/4 inch of insulation from each wire using wire strippers, black (hot), white (neutral), and bare copper (ground).
Connect black to black, white to white, and ground to ground (or to the green grounding screw on the fixture). Twist wires clockwise with lineman’s pliers, then thread a wire nut over the connection and twist clockwise until snug. Tug gently to confirm the connection holds. Wrap the base of the wire nut with electrical tape for extra security, though not strictly required by code.
Tuck the wires neatly into the junction box. Avoid sharp bends or pinching against metal edges.
Wiring Multiple Lights in Series
Most recessed lighting circuits wire in series (also called daisy-chaining). Power flows from the switch to the first fixture, then to the second, third, and so on.
At the first fixture, two cables enter the junction box: one from the power source, one heading to the next light. Connect:
- Both black wires (incoming and outgoing) to the fixture’s black lead using a single wire nut.
- Both white wires to the fixture’s white lead.
- Both ground wires to the fixture’s ground or grounding screw.
Repeat this process at each fixture except the last, which has only one incoming cable.
Maintain proper polarity, black stays hot, white stays neutral. Mixing them causes shorts or non-functional fixtures. Double-check every connection before closing up.
Testing and Troubleshooting Your Installation
Before securing trim rings or closing the ceiling, test the circuit.
Restore power at the breaker panel and flip the switch. All lights should illuminate evenly. If one or more don’t work:
- Recheck wire connections. A loose neutral is the most common culprit.
- Test voltage at each fixture with a multimeter or non-contact tester to confirm power reaches the box.
- Inspect wire nuts. If a connection feels loose, turn off the breaker, remove the nut, re-twist the wires, and reinstall.
If lights flicker, check for undersized wire nuts or poor connections. Flickering can also indicate an overloaded circuit, recalculate total wattage.
Dimming issues usually stem from incompatible dimmers. LED recessed lights require LED-compatible dimmers: older incandescent dimmers cause buzzing or poor performance.
Once everything works, install trim kits per manufacturer instructions. Most snap or twist into place. Walk the room and confirm even light distribution. If dark spots exist, the layout may need adjustment, better to catch it now than after patching and painting.
Wiring recessed lighting is within reach for homeowners with electrical experience, but it demands attention to code, careful planning, and respect for safety. When in doubt, call a licensed electrician. A properly wired installation delivers years of reliable, energy-efficient lighting without callbacks or hazards.
